DJI 2.4GHz Bluetooth Data Link for DJI iPad Ground Station

Description

2.4 GHz Bluetooth Datalink Functions:

1. Provides communications between the Ground end and the Air end using the DJI bidirectional data communication modules; the iPAD Ground Station communicates with the Ground end using the BTU module;

2. Use the 2.4G Bluetooth Datalink Assistant Software to upgrade the firmware of the 2.4G Bluetooth Datalink and the BTU module;

3.Provides bidirectional communications with large dataflow within the specified distance of the remote control.



iPAD Ground Station Functions

1. Friendly interface design;
2. Joystick control on touch screen;
3. Single waypoint function, click desired point and go;
4. Waypoints function, edit a routine and go;
5. Editable Home point & auto Go Home supported;
6. Auto landing function supported;

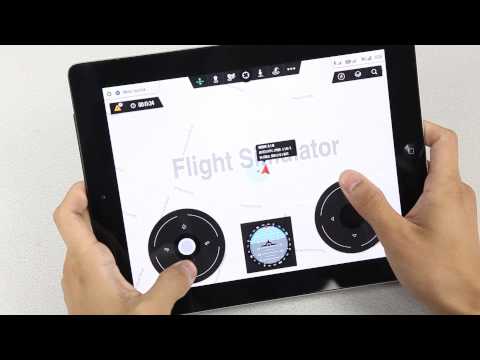

7. Flight simulator supported;
8. Customized joystick mode supported;
9. Routes save and reload supported;
10.Chinese and English UI supported;
11.Voice guidance function;
12.Uses the Bluetooth 4.0 low-power consumption technology;



Flight control systems supported?

2.4G Bluetooth Datalink: ACE ONE, WKM, NAZA-M, NAZA-M V2;

iPAD Ground Station: WKM, NAZA-M, NAZA-M V2;

Note:

• All the firmware of the flight control systems should be upgraded to the latest version.
• The firmware of NAZA-M and NAZA-M V2 should be upgraded to version 4.00

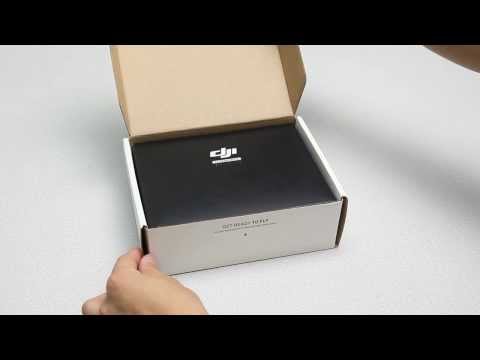

2.4G Bluetooth DataLink Setup Tutorial

[wp_lightbox_ultimate_youtube_video_embed videoid=”cGNKyQhLJxE” playlist=””
width=”800″ height=”600″ hd=”0″ autoplay=”1″ display_control=”1″ fullscreen=”1″
autohide=”2″ theme=”dark” use_https=”” enable_privacy=”” show_logo=”1″
showinfo=”1″ auto_popup=”” direct_embed=”” anchor_type=”text” text=”” source=”” auto_thumb=”1″]



iPad Ground Station Function Demonstration

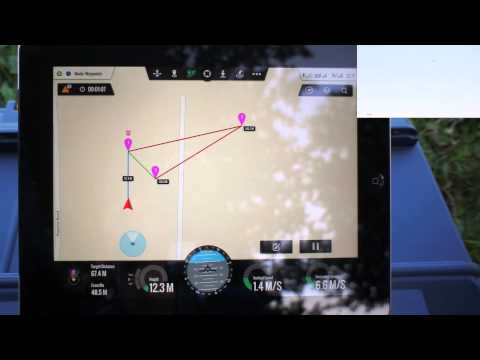

iPad Ground Station Outdoor Flight



iPad Ground Station Beyond Visual Range(BVR) Flight
